Companies are increasingly adopting a multicloud approach to leverage the specific advantages offered by various cloud service providers. This strategy helps avoid vendor lock-in, improve resilience, and optimize costs by utilizing the best offers available on the market. However, managing resources distributed across multiple cloud platforms presents significant challenges, especially regarding inventory management, reporting, analysis, consistent resource tagging, and provisioning. In this article, we will examine how the Azure Arc Multicloud Connector can help overcome these challenges, offering centralized and efficient management of cloud resources.
Challenges in Multicloud Management
Managing a multicloud environment involves numerous challenges that organizations must address to ensure effective and smooth operations. Key difficulties include:
- Inventory Management: Keeping track of all resources distributed across various clouds.
- Reporting and Analysis: Conducting detailed reports and analysis of cloud resources.
- Consistent Resource Tagging: Applying tags uniformly to resources across all cloud platforms.
- Provisioning and Management Tasks: Performing provisioning and other management operations consistently across multiple clouds.
What is the Azure Arc-Enabled Multicloud Connector?
The Azure Arc-enabled Multicloud Connector is a solution that allows the connection of non-Azure public cloud resources to Azure, providing a centralized source for managing and governing cloud resources. Currently, it supports AWS as a public cloud. This connector simply uses API calls to collect and manage resources without the need to install appliances within AWS.

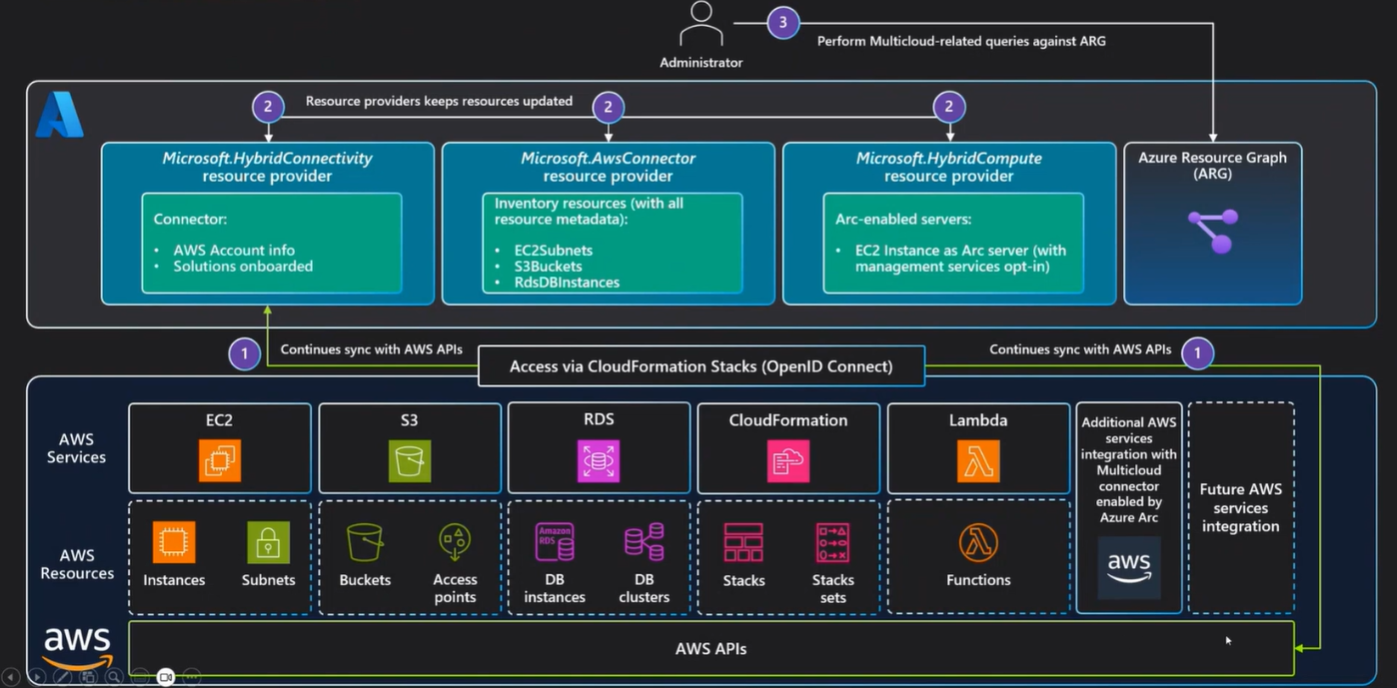

Figure 1 – Solution overview
NOTE: The Multicloud Connector can work alongside the AWS connector of Defender for Cloud. If desired, both connectors can be used for more comprehensive cloud resource management.
The following paragraphs describe the currently supported features: inventory and onboarding.
Inventory Features
The Inventory solution of the Multicloud Connector provides an up-to-date view of resources from other public clouds within Azure, offering a single reference point to view all cloud resources. Once the Inventory solution is enabled, the metadata of the source cloud’s resources are included in the resource representations in Azure, allowing the application of Azure tags and policies. Additionally, it enables querying all cloud resources through the Azure Resource Graph, for example, to find all Azure and AWS resources with a specific tag.
The Inventory solution regularly scans the source cloud to keep the view of resources in Azure updated.
Representation of AWS Resources in Azure
After connecting the AWS cloud and enabling the Inventory solution, the Multicloud Connector creates a new resource group using the naming convention aws_IDAccountAws. The Azure representations of AWS resources are created in this group, using the AwsConnector namespace values described earlier. Azure tags and policies can be applied to these resources. The resources discovered in AWS and projected in Azure are placed in Azure regions using a standard mapping scheme, allowing consistent management of AWS resources within the Azure ecosystem.
Periodic Synchronization Options
The periodic synchronization time selected during the Inventory solution configuration determines how frequently the AWS account is scanned and synchronized with Azure. Enabling periodic synchronization ensures that changes to AWS resources are automatically reflected in Azure. For example, if a resource is deleted in AWS, the corresponding resource in Azure will also be deleted. Periodic synchronization can be disabled during solution configuration, but this may result in an outdated representation of AWS resources in Azure.
Querying for Resources in Azure Resource Graph
Azure Resource Graph is a service designed to extend Azure resource management by providing efficient and performant resource exploration capabilities. Large-scale queries across a set of subscriptions help manage the environment effectively. Queries can be executed using the Resource Graph Explorer in the Azure portal, with query examples for common scenarios available for consultation.
Arc Onboarding Features
The Arc onboarding automatically identifies EC2 instances running in the AWS environment and installs the Azure Connected Machine agent on the VMs, allowing them to be integrated into Azure Arc. Currently, AWS EC2 instances are supported. This simplified experience allows using Azure management services, such as Azure Monitor, on these VMs, providing a centralized method for jointly managing Azure and AWS resources.
Representation of AWS Resources in Azure
After connecting the AWS cloud and enabling the Arc Onboarding solution, the Multicloud Connector creates a new resource group following the naming convention aws_IDAccountAws. When EC2 instances are connected to Azure Arc, their representations appear in this resource group. These resources are assigned to Azure regions using a standard mapping scheme. By default, all regions are scanned, but specific regions can be excluded during solution configuration.
Connectivity Method
During the Arc Onboarding solution creation, it is possible to choose whether the Connected Machine agent should connect to the Internet via a public endpoint or a proxy server. If the proxy server is chosen, the URL of the proxy server to which the EC2 instance can connect must be provided.
Periodic Synchronization Options
The periodic synchronization time selected during the Arc Onboarding solution configuration determines how frequently the AWS account is scanned and synchronized with Azure. Enabling periodic synchronization ensures that whenever a new EC2 instance that meets the prerequisites is detected, the Arc agent will be automatically installed. If preferred, periodic synchronization can be disabled during solution configuration. In this case, new EC2 instances will not be automatically integrated into Azure Arc, as Azure will not be able to scan for new instances.
Configuration and Operational Details
The initial configuration of the multicloud connector requires using the Azure portal to create the connector itself, specifying the resource group and AWS account to be integrated. Subsequently, it is necessary to download and apply the CloudFormation templates in AWS to configure the required IAM roles. Finally, it is important to configure the synchronization intervals to periodically update resource information, with a default interval of one hour.
Pricing
The Multicloud Connector is free but integrates with other Azure services that have their own pricing models. Any Azure service used with the Multicloud Connector, such as Azure Monitor, will be charged according to the specific service pricing. For more information, you can consult the official Azure cost page.
After connecting the AWS cloud, the Multicloud Connector queries the AWS resource APIs multiple times a day. These read-only API calls incur no costs in AWS but are logged in CloudTrail if a trail for read events has been enabled.
Conclusions
The Azure Arc Multicloud Connector represents an advanced and strategic solution for addressing the challenges of multicloud management. By centralizing the governance and inventory of cloud resources, companies can achieve a unified and consistent view of their distributed infrastructures. This tool not only improves operational efficiency through periodic synchronization and consistent resource tagging but also enables more secure management integrated with Azure services. Moreover, adopting the Azure Arc Multicloud Connector allows organizations to optimize costs and enhance resilience by leveraging the best offers from various cloud providers without the risk of vendor lock-in. Ultimately, this solution proves fundamental for companies aiming for efficient, innovative, and scalable multicloud management.
